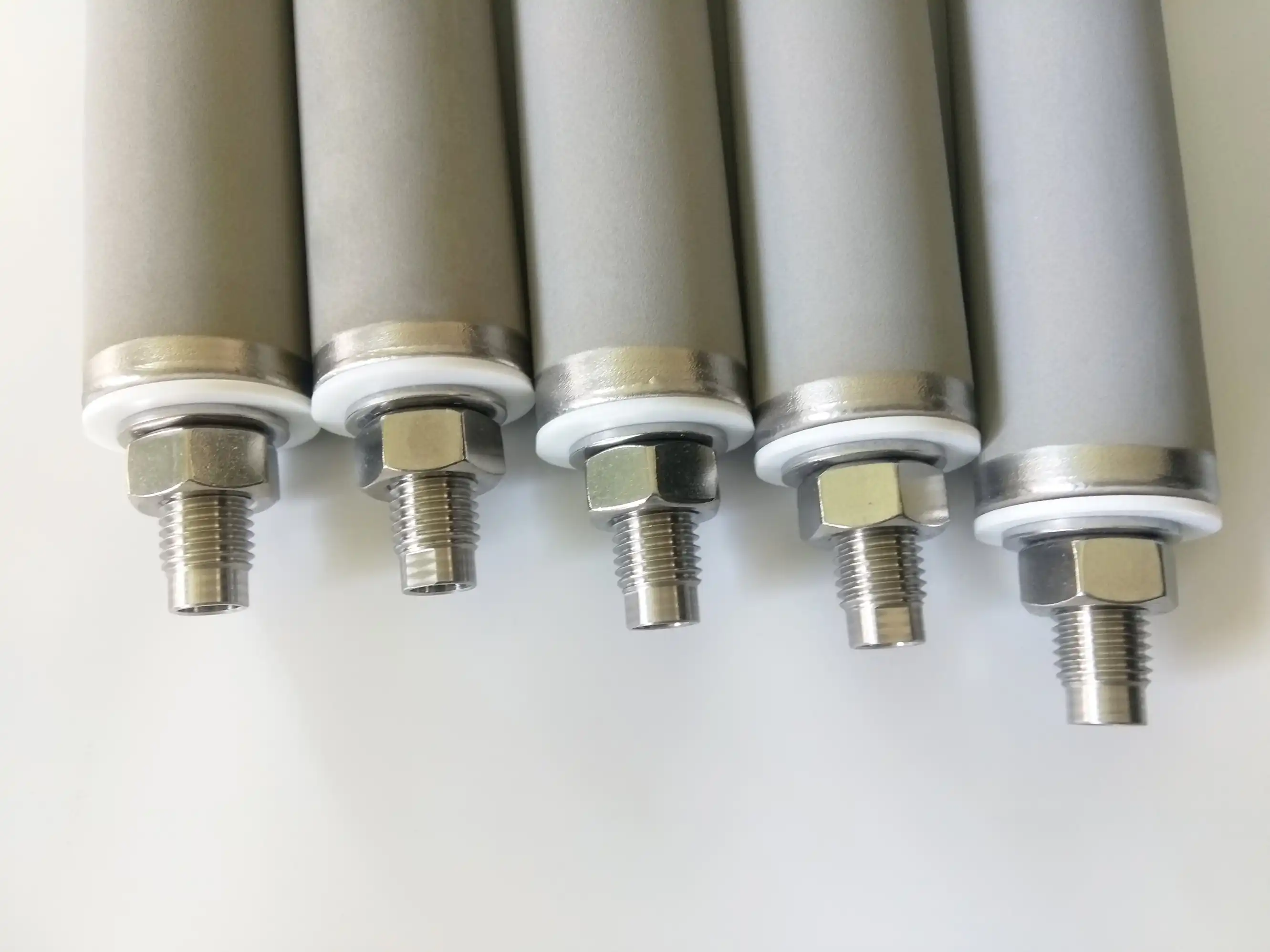

What Factors Should Be Considered When Selecting A 316L Porous Sintered Cartridge Filter Element?

When selecting a 316L Porous Sintered Cartridge Filter Element for industrial applications, several critical factors must be carefully evaluated to ensure optimal performance and longevity. These specialized filtration solutions, crafted from high-grade 316L stainless steel through advanced powder metallurgy techniques, are designed to excel in demanding environments characterized by extreme temperatures, high pressures, and corrosive conditions. Key considerations include the specific filtration requirements of your application, such as micron rating (ranging from 0.22-100μm), operating parameters (temperatures up to 800°C and pressures reaching 150 bar), material compatibility with process fluids, and the expected lifespan of the filter element. Additionally, factors such as flow rate capacity, pressure drop tolerance, and maintenance requirements significantly impact the overall efficiency and cost-effectiveness of your filtration system.

Critical Performance Parameters for 316L Porous Sintered Filter Selection

Micron Rating and Filtration Efficiency

The micron rating of a 316L Porous Sintered Cartridge Filter Element is perhaps the most fundamental specification to consider when making a selection. This parameter, which typically ranges from 0.22 to 100 microns for these elements, directly determines what size particles will be captured during the filtration process. For applications requiring ultrapure outputs, such as pharmaceutical manufacturing or semiconductor production, elements with lower micron ratings (0.22-5 microns) are essential. The relationship between micron rating and filtration efficiency is particularly important – Shaanxi Filture's 316L Porous Sintered Cartridge Filter Elements deliver exceptional filtration efficiency of 99.9%+ across their range of micron ratings, ensuring reliable performance even in the most demanding applications. This remarkable efficiency is achieved through the controlled sintering process that creates a precise, three-dimensional porous structure throughout the filter media. When evaluating filter elements, it's crucial to understand that absolute ratings (where virtually all particles larger than the specified size are captured) differ significantly from nominal ratings (where only a percentage of particles at the specified size are removed). The 316L Porous Sintered Cartridge Filter Elements offer absolute filtration, providing consistent and predictable performance across various industrial applications including fuel cell components, hydrogen production equipment, and chemical processing systems where contamination control is paramount.

Operating Environment Compatibility

The operating environment in which a 316L Porous Sintered Cartridge Filter Element will function is a decisive factor in selection. These premium filtration solutions are specifically engineered to withstand extreme conditions that would compromise or destroy conventional filter media. With an impressive operating temperature range reaching up to 800°C (1472°F), these elements maintain structural integrity and filtration performance in high-temperature processes common in chemical manufacturing, energy production, and aerospace applications. Similarly, their ability to withstand operating pressures up to 150 bar makes them suitable for high-pressure systems where ordinary filters would fail. The 316L stainless steel construction provides exceptional corrosion resistance against a wide spectrum of aggressive chemicals, acids, and alkalis, significantly extending service life in harsh environments. When selecting a filter element, it's essential to analyze not just the current operating conditions but also potential fluctuations or process upsets that might temporarily expose the filter to more extreme conditions. The robust nature of 316L Porous Sintered Cartridge Filter Elements provides valuable operational flexibility and safety margins in dynamic industrial environments. Additionally, consideration should be given to potential thermal cycling, pressure pulsations, or vibration that might affect filter performance and longevity. Shaanxi Filture's elements are designed with structural stability that maintains consistent performance even under these challenging dynamic conditions, ensuring reliable filtration when it matters most.

Flow Rate Requirements and Pressure Drop Considerations

Understanding the relationship between flow rate requirements and pressure drop is critical when selecting a 316L Porous Sintered Cartridge Filter Element. The high porosity characteristic of these sintered elements facilitates efficient fluid flow while maintaining precise filtration performance, but the specific design must align with your system's flow demands. A filter element with insufficient flow capacity will create excessive pressure drop, leading to increased energy consumption, reduced system efficiency, and potentially premature filter failure. Conversely, oversized filter elements represent unnecessary capital expenditure. When evaluating 316L Porous Sintered Cartridge Filter Elements, consider both initial (clean) pressure drop and the expected increase over the service life as contaminants accumulate. The unique advantage of these sintered elements is their robust construction that allows for cleaning and regeneration, effectively extending operational life and maintaining optimal flow characteristics. The dimensional specifications of the filter element, including outer diameter (typically 60mm/2.36") and length options ranging from 254mm (10") to 1016mm (40"), directly impact flow capacity and should be selected based on system requirements. For applications with variable flow rates or pulsating flows, the structural integrity of 316L Porous Sintered Cartridge Filter Elements provides stable performance without media migration or channeling that can compromise filtration efficiency. Working with Shaanxi Filture's technical team allows for customization of surface area and dimensional parameters to achieve the optimal balance between pressure drop and filtration performance for your specific application requirements.

Material Properties and Construction Features

Corrosion Resistance and Material Durability

The exceptional corrosion resistance of 316L stainless steel forms the foundation of the 316L Porous Sintered Cartridge Filter Element's longevity in aggressive environments. This high-grade austenitic stainless steel contains molybdenum, which significantly enhances resistance to pitting and crevice corrosion, particularly in chloride-rich environments that would rapidly degrade standard stainless steels. The low carbon content (indicated by the "L" designation) further improves corrosion resistance in welded structures by minimizing carbide precipitation during high-temperature operations. When selecting a filter element for corrosive applications, understanding the specific chemical compatibility of 316L with your process fluids is essential – these elements excel in diverse environments including organic acids, most chlorides, and many industrial chemicals, making them versatile across chemical processing, pharmaceutical manufacturing, and food processing industries. The material durability of 316L Porous Sintered Cartridge Filter Elements extends beyond mere corrosion resistance to encompass mechanical strength under pressure and temperature extremes. The sintering process creates metallurgical bonds between powder particles, resulting in a unified structure that maintains dimensional stability even in challenging conditions. This superior durability translates directly to extended service life and reduced replacement frequency, offering significant long-term cost advantages despite a potentially higher initial investment compared to non-metallic alternatives. For applications involving thermal cycling or rapid temperature changes, the excellent thermal stability of 316L stainless steel prevents the cracking and failure common in ceramic or polymer-based filter media, ensuring consistent performance throughout the operational temperature range of up to 800°C.

Sintering Technology and Structural Integrity

The advanced sintering technology employed in manufacturing 316L Porous Sintered Cartridge Filter Elements represents a sophisticated metallurgical process that directly impacts filtration performance and durability. During sintering, precisely controlled heat below the melting point of 316L stainless steel creates solid-state diffusion bonds between metal powder particles, forming a homogeneous porous structure with consistent pore distribution and size. This manufacturing technique differs fundamentally from woven mesh or fiber-based alternatives, creating a rigid three-dimensional filtration matrix that maintains its integrity under mechanical stress, pressure fluctuations, and thermal cycling. The structural integrity of 316L Porous Sintered Cartridge Filter Elements derives from this unique construction method, eliminating the potential failure points common in assembled or layered filter designs. The monolithic structure effectively distributes stress throughout the element, preventing the localized failures that occur at seams or joints in conventional filters. When evaluating filter options, this superior structural integrity translates to exceptional reliability in critical applications where filter failure could result in costly downtime or compromised product quality. Shaanxi Filture's manufacturing expertise ensures precise control over the sintering parameters, creating elements with consistent porosity and pore size distribution from batch to batch. This manufacturing consistency is particularly valuable in regulated industries such as pharmaceutical production, where validation and qualification of filtration systems demand reproducible performance. Additionally, the sintering process allows for customization of pore structure, with options ranging from symmetrical pores for general filtration to asymmetric designs that optimize flow characteristics while maintaining filtration efficiency. This technological flexibility enables the 316L Porous Sintered Cartridge Filter Element to be tailored precisely to specific application requirements without compromising the fundamental structural integrity that defines its performance.

Cleanability and Reusability Features

One of the most significant advantages of the 316L Porous Sintered Cartridge Filter Element is its exceptional cleanability and reusability, which substantially impacts the total cost of ownership in industrial filtration systems. Unlike disposable filter elements that require frequent replacement, these sintered metal filters can withstand multiple aggressive cleaning cycles without degradation of the filter structure or performance. Backwashing, ultrasonic cleaning, chemical soaking, and high-temperature burn-off methods can all be employed to remove accumulated contaminants, effectively regenerating the filter to near-original performance specifications. This cleanability characteristic is particularly valuable in applications where filter replacement involves system shutdown, resulting in costly production interruptions. The robust construction of the 316L Porous Sintered Cartridge Filter Element allows for in-place cleaning in many systems, minimizing downtime and maintenance requirements. When selecting a filter element with cleaning and reuse in mind, it's important to consider the specific contaminants involved and the most effective regeneration methods for your application. The 316L stainless steel construction can withstand aggressive chemical cleaning agents that would damage polymeric or ceramic alternatives, providing flexibility in cleaning protocols to address various contaminant types. Additionally, the high-temperature tolerance of these elements (up to 800°C) permits burn-off cleaning for organic contaminants, completely removing substances that might irreversibly foul other filter media types. For applications requiring steam sterilization, such as in pharmaceutical or food processing systems, the 316L Porous Sintered Cartridge Filter Element maintains its structural and filtration integrity through repeated sterilization cycles, a crucial consideration when evaluating long-term performance and compliance with sanitary standards. The economic implications of this reusability are substantial – while the initial investment may exceed that of disposable alternatives, the extended service life and reduced replacement frequency often result in significantly lower total filtration costs over the system's operational lifetime.

Application-Specific Selection Factors

Industry-Specific Requirements and Standards

When selecting a 316L Porous Sintered Cartridge Filter Element, understanding the specific regulatory requirements and industry standards governing your application is crucial. In pharmaceutical manufacturing, these elements must comply with FDA standards regarding material compatibility and leachable compounds, while also meeting rigorous validation requirements for consistent performance. The clean manufacturing process employed by Shaanxi Filture ensures their 316L Porous Sintered Cartridge Filter Elements satisfy these demanding standards, providing documentation to support qualification for critical applications. In chemical processing industries, compliance with pressure equipment directives and chemical compatibility certifications may be necessary, particularly when handling hazardous materials where filter failure could create safety risks. The extensive certification portfolio available for these filter elements, including ISO, CE, and FDA certifications, provides assurance of performance and safety across diverse regulatory environments. For food and beverage applications, additional requirements regarding surface finish and traceability become relevant, with the smooth surface characteristics of 316L Porous Sintered Cartridge Filter Elements being advantageous for minimizing product retention and facilitating thorough cleaning. The energy sector, particularly in hydrogen production and fuel cell applications, demands filter elements that maintain consistent performance under fluctuating conditions while meeting stringent purity requirements for process gases and liquids. The precise pore structure and distribution in these sintered elements provide reliable filtration without the risk of media migration that could contaminate downstream processes. When evaluating filter options for your specific industry, consideration should be given not only to current regulatory requirements but also to anticipated changes in standards that might affect filter selection during the expected service life. Working with experienced filtration specialists at Shaanxi Filture ensures access to the latest industry-specific knowledge and application expertise, helping you navigate complex compliance landscapes while optimizing filtration performance for your particular needs.

Process Fluid Characteristics and Compatibility

The physical and chemical properties of process fluids significantly influence the selection of appropriate 316L Porous Sintered Cartridge Filter Elements. Viscosity directly impacts flow resistance through the filter media, potentially requiring adjustments in element dimensions or porosity to maintain acceptable pressure drop parameters. For highly viscous fluids, elements with larger pore sizes and increased surface area may be necessary to achieve desired flow rates without excessive differential pressure. Temperature fluctuations in process fluids can cause thermal expansion and contraction in both the fluid and filter materials, making the dimensional stability of 316L Porous Sintered Cartridge Filter Elements particularly valuable in maintaining seal integrity and preventing bypass. When filtering suspensions or slurries with high solids content, the depth filtration characteristics of sintered elements provide superior particle capture throughout the media thickness, extending service life compared to surface filtration alternatives. Chemical compatibility between process fluids and 316L stainless steel must be thoroughly evaluated, with particular attention to potential corrosion mechanisms including pitting, crevice corrosion, or stress corrosion cracking under specific chemical conditions. While 316L offers excellent resistance to a broad spectrum of chemicals, certain concentrated acids, chlorides at elevated temperatures, or specific organic compounds may require alternative alloy selections available through Shaanxi Filture's custom manufacturing capabilities. For gas filtration applications, considerations extend to potential condensation within the filter element, where the wettability characteristics of 316L Porous Sintered Cartridge Filter Elements provide reliable performance even with occasional liquid presence. The non-shedding nature of sintered metal elements makes them ideal for applications where media migration could contaminate sensitive processes or damage downstream equipment such as high-precision nozzles or membrane systems. When evaluating filter options for multi-phase flows or processes with varying fluid characteristics, the structural stability and consistent performance of these elements across diverse operating conditions represent significant advantages over less robust alternatives.

System Integration and Installation Considerations

Successful implementation of 316L Porous Sintered Cartridge Filter Elements requires careful attention to system integration factors that influence both installation ease and long-term performance. The standard dimensions available (outer diameter of 60mm/2.36" and lengths ranging from 254mm/10" to 1016mm/40") are designed for compatibility with common industrial housing designs, but custom sizes can be manufactured to accommodate unique system requirements or retrofit applications where space constraints exist. Proper sealing between the filter element and housing is critical to preventing bypass, with the rigid construction of 316L Porous Sintered Cartridge Filter Elements maintaining dimensional stability under pressure and temperature fluctuations that might compromise sealing in less stable filter media. Consideration should be given to the mounting orientation and flow direction, as these factors can influence both filtration efficiency and cleaning effectiveness during backwash operations. When integrating these elements into existing systems, evaluation of upstream and downstream components is essential to ensure compatibility with the pressure ratings and flow characteristics of the 316L Porous Sintered Cartridge Filter Element. The high-pressure capability (up to 150 bar) of these elements may exceed the limitations of standard housings or connecting pipework, potentially requiring system modifications to realize the full benefits of these robust filter solutions. For applications requiring frequent inspection or cleaning, housing designs that facilitate easy access and element removal should be selected, leveraging the durable construction of sintered elements that resist handling damage during maintenance operations. In systems subject to pressure pulsations or water hammer effects, the rigid structure of 316L Porous Sintered Cartridge Filter Elements provides stability that prevents media movement or deformation that could compromise filtration integrity in flexible filter alternatives. Working with Shaanxi Filture's technical specialists during system design or upgrade projects ensures proper integration of these premium filtration elements, optimizing both installation efficiency and long-term operational performance through expert recommendation of appropriate housings, sealing methods, and maintenance protocols tailored to your specific application requirements.

Conclusion

Selecting the right 316L Porous Sintered Cartridge Filter Element requires careful consideration of performance parameters, material properties, and application-specific factors. By evaluating micron rating, operating environment compatibility, flow requirements, material durability, and system integration needs, you can ensure optimal filtration performance for your challenging industrial applications. Shaanxi Filture's premium elements deliver exceptional value through their durability, cleanability, and consistent performance in extreme conditions.

Ready to optimize your filtration system with industry-leading 316L Porous Sintered Cartridge Filter Elements? Our engineering team is standing by to provide personalized recommendations based on your specific application requirements. With customizable specifications, ISO/CE/FDA certifications, and over two decades of filtration expertise, we deliver solutions that maximize efficiency while minimizing downtime. Contact us today at sam.young@sintered-metal.com to discuss how our advanced filtration technology can enhance your operations.
