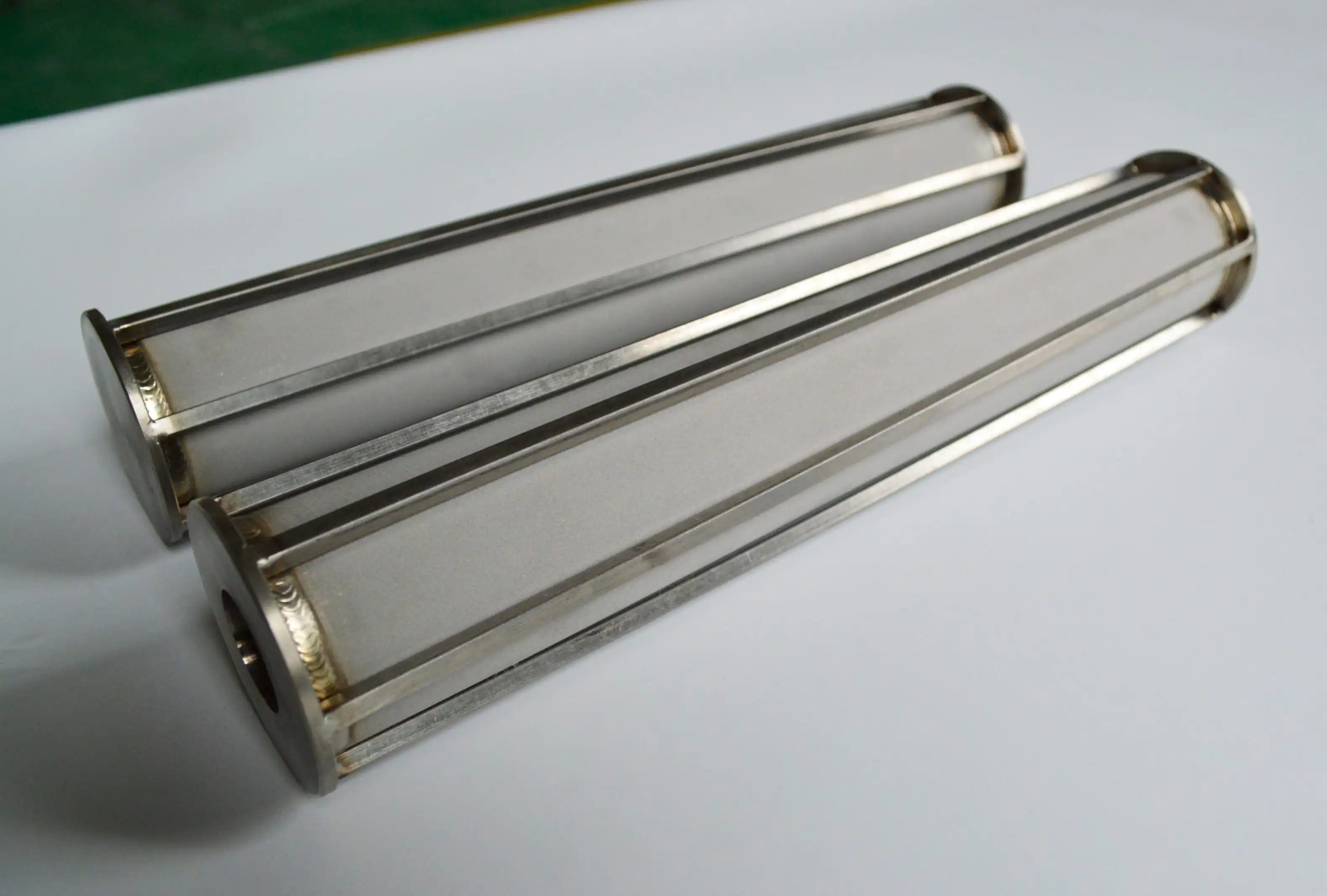

What Is A 316L Porous Sintered Cartridge Filter Element Used For?

The 316L Porous Sintered Cartridge Filter Element represents the pinnacle of industrial filtration technology, specifically engineered to excel in demanding environments where standard filtration solutions fall short. Made through an advanced powder metallurgy process, these premium filter elements consist of sintered 316L stainless steel particles that create a porous, three-dimensional matrix with precise pore size control. This sophisticated filtration solution offers exceptional performance in high-temperature, high-pressure, and highly corrosive applications, making it indispensable across chemical processing, pharmaceutical manufacturing, energy production, and aerospace industries. With filtration capabilities ranging from 0.22 to 100 microns, the 316L Porous Sintered Cartridge Filter Element delivers consistent, reliable filtration while maintaining structural integrity under extreme conditions that would compromise conventional filters.

Industrial Applications and Performance Benefits of 316L Porous Sintered Cartridge Filter Elements

Chemical Processing and Corrosive Environments

The 316L Porous Sintered Cartridge Filter Element stands as an exceptional filtration solution for chemical processing applications where aggressive media and harsh conditions are commonplace. These filter elements excel in environments where most conventional filters would rapidly deteriorate, thanks to the inherent properties of 316L stainless steel, which contains molybdenum for enhanced resistance against chlorides and acids. When processing corrosive chemicals such as strong acids, alkalis, or chlorine compounds, these elements maintain their structural integrity and filtration efficiency without contaminating the process stream. The sintering process creates a monolithic structure without adhesives or binding agents that could leach into the filtered media, making the 316L Porous Sintered Cartridge Filter Element ideal for high-purity chemical production where contamination must be avoided at all costs. With operating temperature capabilities up to 800°C (1472°F) and pressure ratings of up to 150 bar, these filters provide reliable service in reaction vessels, chemical transfer lines, and catalyst recovery systems. Additionally, the customizable pore size range from 0.5 to 100 microns allows chemical manufacturers to precisely target specific particulate sizes while maintaining optimal flow rates, reducing process downtime and enhancing operational efficiency across various chemical manufacturing sectors.

Pharmaceutical and Biopharmaceutical Production

In pharmaceutical and biopharmaceutical manufacturing, where product purity and process consistency are paramount, the 316L Porous Sintered Cartridge Filter Element delivers unmatched performance. These filter elements play a crucial role in ensuring the safety and efficacy of pharmaceutical products through multiple stages of production. The pharmaceutical-grade 316L stainless steel construction complies with FDA requirements, offering a non-shedding, non-migrating filtration medium that minimizes the risk of product contamination. With filtration efficiency exceeding 99.9% at rated pore sizes, these elements effectively remove particulates, microorganisms, and other contaminants from process streams, active pharmaceutical ingredients, and final drug formulations. The 316L Porous Sintered Cartridge Filter Element's seamless construction eliminates bypass risks prevalent in traditional cartridge filters with gaskets or O-rings, ensuring absolute filtration reliability in critical applications. Furthermore, their exceptional thermal stability allows for repeated steam-in-place (SIP) and clean-in-place (CIP) cycles without degradation, supporting the stringent sanitation protocols required in pharmaceutical environments. The robust construction withstands repeated cleaning cycles using aggressive solvents and sanitizing agents, translating to extended service life and reduced replacement frequency compared to polymeric filter alternatives. For biopharmaceutical applications involving proteins, antibodies, and other sensitive biomolecules, these filter elements provide gentle filtration while maintaining high throughput rates, balancing product recovery with filtration precision.

Energy Sector and High-Temperature Applications

The energy sector presents some of the most demanding filtration challenges, where the 316L Porous Sintered Cartridge Filter Element proves its exceptional value through reliability under extreme conditions. In power generation facilities, these filter elements are deployed in steam systems, condensate recovery units, and fuel processing lines where temperatures frequently exceed the limitations of conventional filtration media. The sintered metal construction maintains dimensional stability and filtration performance at temperatures up to 800°C, ensuring continuous operation in high-temperature gas filtration, catalyst protection systems, and steam purification processes. For renewable energy applications, particularly in hydrogen production and fuel cell technologies, the 316L Porous Sintered Cartridge Filter Element provides crucial protection against contaminants that could poison catalysts or damage sensitive components. The filter's uniform pore structure, with ratings as fine as 0.22 microns, effectively removes particulates while allowing efficient gas flow, critical for maintaining the performance of electrolyzers and fuel cell stacks. In nuclear energy applications, these filter elements withstand radiation exposure while providing dependable filtration for cooling systems, process water, and waste treatment streams. The robust construction, featuring wall thicknesses tailored to application requirements, resists mechanical stress from pressure fluctuations and flow surges common in energy production environments. Additionally, the cleanable nature of the 316L Porous Sintered Cartridge Filter Element makes it economically advantageous for energy facilities, as proper maintenance can restore filtration performance multiple times before replacement becomes necessary, reducing operational costs and minimizing waste generation in this critical industrial sector.

Manufacturing Process and Material Properties of 316L Sintered Filters

Advanced Sintering Technology and Material Science

The production of 316L Porous Sintered Cartridge Filter Elements represents the intersection of advanced materials science and precision manufacturing techniques. The process begins with carefully selected 316L stainless steel powder, characterized by specific particle size distribution and purity levels that directly influence the final filter properties. This high-quality raw material undergoes multiple preparation stages to ensure uniform composition before entering the sintering process. During sintering, the metal powder particles are heated to temperatures below their melting point but high enough to facilitate atomic diffusion between adjacent particles, creating solid metallic bonds at contact points. This technical process creates a three-dimensional porous network with precisely controlled characteristics. The sintering temperature profile, typically between 1000-1200°C for 316L stainless steel, is carefully managed throughout the process, as even minor variations can significantly affect the final pore structure and mechanical properties. The controlled atmosphere sintering environment prevents oxidation while promoting optimal bonding between particles. This sophisticated manufacturing approach results in a 316L Porous Sintered Cartridge Filter Element with a unique combination of filtration efficiency and structural integrity not achievable through traditional filter fabrication methods. The homogeneous pore distribution throughout the filter volume enables consistent performance across the entire filtration surface, eliminating the channeling issues common in pleated or wound filter designs. Furthermore, the absence of adhesives or binders in the sintering process ensures that the filter maintains its performance characteristics even when exposed to aggressive chemicals or extreme temperatures that would degrade conventional bonding agents.

Mechanical Strength and Structural Integrity Tests

The exceptional durability of the 316L Porous Sintered Cartridge Filter Element stems from rigorous mechanical testing throughout the manufacturing process. Each filter undergoes comprehensive structural evaluation to ensure it meets or exceeds industry standards for mechanical strength and reliability in demanding applications. Burst pressure testing subjects the filter elements to pressures significantly higher than their rated operating conditions, verifying their ability to withstand pressure spikes and hydraulic surges without failure. Specially designed equipment applies controlled pressure differentials across the filter while monitoring for deformation or breakthrough, establishing safe operating parameters for each specific design configuration. Compression and tensile strength tests evaluate the filter's resistance to mechanical stresses encountered during installation and operation, particularly important in high-vibration environments or applications with frequent pressure cycling. The 316L Porous Sintered Cartridge Filter Element demonstrates superior resistance to collapse compared to ceramic or polymer alternatives, maintaining consistent flow paths even under challenging conditions. Metallographic microscopy examinations assess the quality of interparticle bonds and overall structural uniformity, ensuring manufacturing consistency from batch to batch. This microscopic analysis verifies proper sintering has occurred throughout the filter matrix without defects or inconsistencies that could compromise performance. Additionally, cyclic pressure testing simulates real-world operating conditions by subjecting filters to repeated pressure fluctuations, validating long-term reliability before deployment in critical applications. The cumulative data from these comprehensive mechanical evaluations provides customers with confidence that the 316L Porous Sintered Cartridge Filter Element will maintain its structural integrity throughout its service life, even when challenged by the extreme conditions typical in industrial filtration scenarios.

Corrosion Resistance and Environmental Testing

The exceptional chemical compatibility of the 316L Porous Sintered Cartridge Filter Element is verified through extensive corrosion testing protocols that simulate the harshest industrial environments. Salt spray testing according to ASTM B117 standards exposes filter samples to concentrated salt solutions for extended periods, evaluating resistance to chloride-induced corrosion that would compromise filtration performance. These accelerated aging tests provide valuable data on long-term performance expectations in coastal or marine applications where salt exposure is unavoidable. Immersion testing in specific chemical media relevant to customer applications, including acids, bases, and organic solvents, confirms the 316L stainless steel's compatibility with process fluids across various industries. These tests measure weight loss, dimensional changes, and surface alterations after controlled exposure periods, establishing reliable guidelines for chemical compatibility. The 316L Porous Sintered Cartridge Filter Element undergoes galvanic corrosion assessment when integrated into systems with dissimilar metals, ensuring that potential galvanic couples won't accelerate corrosion in actual installations. High-temperature oxidation resistance testing evaluates the filter's performance in elevated temperature applications, where the formation of protective oxide layers becomes critical for long-term durability. The special composition of 316L stainless steel, with its higher nickel content and addition of molybdenum compared to standard grades, provides enhanced resistance to pitting and crevice corrosion that could otherwise compromise filtration efficiency over time. Furthermore, stress corrosion cracking (SCC) resistance testing examines the filter's performance under simultaneous mechanical stress and chemical exposure, conditions that often accelerate material failure in conventional filtration products. Through this comprehensive environmental testing regimen, Shaanxi Filture ensures that each 316L Porous Sintered Cartridge Filter Element delivers consistent performance throughout its service life, even when challenged by combinations of corrosive media, temperature fluctuations, and mechanical stresses typical in demanding industrial applications.

Customization Options and Technical Specifications for Optimal Filtration

Pore Size Selection and Filtration Efficiency Considerations

Selecting the optimal pore size for a 316L Porous Sintered Cartridge Filter Element requires careful analysis of the specific filtration challenge at hand, balancing contaminant removal efficiency against flow rate requirements. The available pore size range from 0.22 to 100 microns offers tremendous flexibility across applications, with each size delivering specific performance characteristics. For fine filtration requirements in pharmaceutical or semiconductor applications, elements with pore sizes between 0.22-5 microns provide exceptional particle removal with verified 99.9%+ efficiency using industry-standard challenge tests. These smaller pore sizes effectively capture microorganisms, fine catalyst particles, and colloidal contaminants while maintaining acceptable flow rates through precision engineering of the pore structure. For intermediate filtration needs in chemical processing or industrial gas applications, elements with 5-20 micron ratings offer an ideal balance between contaminant removal and flow capacity, protecting downstream equipment while minimizing pressure drop and energy consumption. The coarser end of the spectrum, from 20-100 microns, provides robust pre-filtration capabilities for high-solids applications where removal of larger particulates protects more refined filtration stages downstream. The sintering process used to manufacture 316L Porous Sintered Cartridge Filter Elements creates interconnected, three-dimensional pore structures that differ fundamentally from the straight-through channels found in membrane filters. This tortuous path filtration mechanism enhances particle capture through mechanisms including direct interception, inertial impaction, and diffusional capture, resulting in higher contaminant holding capacity and extended service life. Additionally, the uniform distribution of pores throughout the filter volume enables consistent performance across the entire filtration surface, eliminating the bypass concerns common with pleated or depth filters that can develop preferential flow paths. This comprehensive approach to pore size engineering ensures that each 316L Porous Sintered Cartridge Filter Element delivers reliable filtration performance tailored to specific application requirements, whether prioritizing absolute retention ratings for critical processes or higher flow capacity for bulk separation applications.

Dimensional Customization and System Integration

The versatility of the 316L Porous Sintered Cartridge Filter Element extends beyond filtration performance to encompass physical dimensions and integration features tailored to specific system requirements. Standard sizing options include outer diameters of 60mm (2.36") and lengths ranging from 254mm (10") to 1016mm (40"), providing compatibility with many existing filter housings and minimizing retrofit costs when upgrading from conventional filtration technologies. However, Shaanxi Filture's advanced manufacturing capabilities enable production of custom dimensions to precisely match unique system specifications or space constraints, eliminating the need for system modifications to accommodate standard filter sizes. The end fitting design represents another crucial customization parameter, with options including plain ends for welded installation, threaded connections for mechanical attachment, or specialized fittings for quick-disconnect systems in applications requiring frequent element replacement. For high-pressure applications exceeding 150 bar, reinforced designs incorporate structural supports that maintain the filter element's dimensional stability without compromising filtration performance. Multi-layer construction options combine different pore sizes within a single element, creating gradient filtration structures that progressively remove contaminants while extending service life and optimizing flow characteristics. Surface treatments such as electro-polishing can be applied to reduce protein binding in pharmaceutical applications or minimize product retention in food processing systems, enhancing both filtration efficiency and economic performance. For challenging thermal cycling applications, custom alloy selection and specialized manufacturing techniques ensure dimensional stability across the operating temperature range, preventing thermal expansion issues that could compromise sealing integrity. Additionally, the 316L Porous Sintered Cartridge Filter Element can be manufactured with integrated sensors or sampling ports when process monitoring or quality control verification requires direct access to the filtrate stream. This comprehensive approach to dimensional customization and system integration ensures that each filter element functions as an integral component of the overall process system, delivering optimal performance while minimizing installation challenges and operating costs throughout its service life.

Performance Testing and Quality Assurance Protocols

Every 316L Porous Sintered Cartridge Filter Element undergoes rigorous performance testing before shipment to ensure it meets exacting standards for filtration efficiency, flow characteristics, and material integrity. Bubble point testing, conducted according to ASTM F316 standards, verifies the maximum pore size and integrity of each filter element by measuring the pressure required to force air through a wetted filter. This non-destructive test provides critical quality assurance data while preserving the filter for subsequent use. Flow rate characterization establishes the pressure drop versus flow rate relationship across multiple process fluids, generating performance curves that help customers predict system behavior under various operating conditions. These empirical measurements verify that each filter element will deliver the expected flow capacity without excessive pressure losses that could impact system efficiency. Particle challenge testing using calibrated test dust or microspheres quantifies the filter's ability to remove contaminants of specific sizes, validating the nominal and absolute filtration ratings under standardized conditions. For 316L Porous Sintered Cartridge Filter Elements intended for critical applications, additional validation may include microbial retention testing or extractables analysis to ensure compatibility with sensitive processes. Material verification through X-ray fluorescence spectroscopy confirms the exact composition of the 316L stainless steel used in manufacturing, ensuring consistent corrosion resistance and mechanical properties. Additionally, all filters undergo dimensional inspection using precision measurement tools to verify conformance with specified tolerances, particularly critical for custom sizes designed for specific system integration. Shaanxi Filture's comprehensive quality management system incorporates ISO 9001 principles throughout the manufacturing process, with full traceability from raw material selection through final performance validation. Each 316L Porous Sintered Cartridge Filter Element receives a unique identifier linking it to batch-specific quality records, test results, and material certifications, providing customers with complete documentation for regulatory compliance or audit purposes. This meticulous approach to quality assurance ensures that every filter element delivers consistent, reliable performance that matches or exceeds customer specifications, regardless of application complexity or operating conditions.

Conclusion

The 316L Porous Sintered Cartridge Filter Element represents the pinnacle of industrial filtration technology, offering unmatched durability, precision, and versatility across demanding applications. From chemical processing to pharmaceutical production and energy generation, these premium filters deliver exceptional performance where conventional solutions fail. With customizable specifications, rigorous quality control, and comprehensive technical support, they provide a superior filtration solution for the most challenging industrial environments.

Ready to elevate your filtration performance? Contact our expert team today at sam.young@sintered-metal.com to discover how our custom 316L Porous Sintered Cartridge Filter Elements can optimize your processes, reduce operational costs, and enhance product quality. With ISO, CE, and FDA certifications backing our products, and flexible OEM services available, we're committed to delivering filtration excellence tailored to your exact specifications. Let's transform your filtration challenges into opportunities for process improvement and operational excellence.
